StampA5D36 (256F/512R)
| 12.07.2023 | contact form | sample request |
Informations

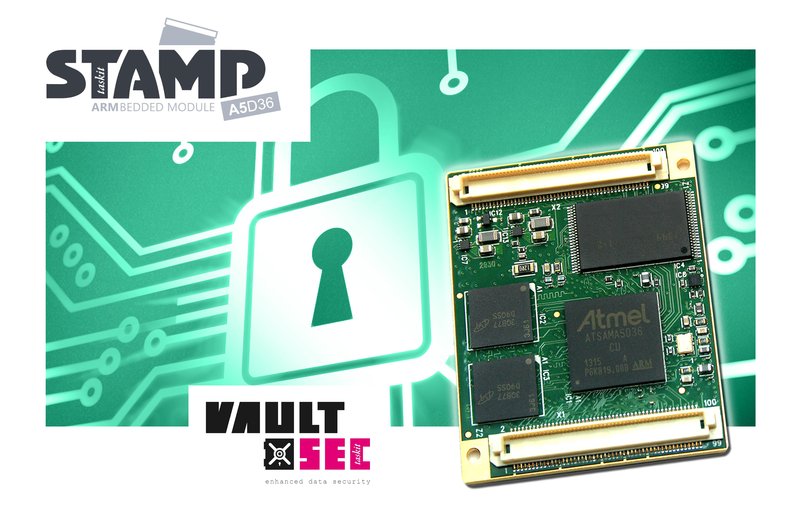

The Stamp A5D36 is one of taskit GmbH's core products. The Stamp was developed to realize high performance with low power consumption on the smallest possible circuit board. It is equipped with the CortexA5D36-528 MHz core and 256 MB flash and 512 MB LPDDR memory.
The StampA5D36 is both a small "intelligent" CPU module and a universal Linux CPU card. It can be used wherever energy and space requirements are important. The design of the StampA5D36 is adapted to the core needs of the processor such as DDRAM and Flash, giving the customer a wide choice of peripheral and environment configurations. It has all the necessary interfaces to support a wide range of peripherals. Equipped with an integrated LSD/TFT and touch controller, applications with graphical requirements can be implemented cost-effectively and individually.
The CPU module is used in areas such as telemetry, medical technology, industrial data logging or even on off-shore systems, measuring and testing devices as well as simple and more complex control and automation tasks.
The Stamp is also available in the following sizes:
Technical Details
- CPU: Atmel® AT91SAM5D36 with Cortex-A5 core
- Flash-memory size: 256 MB, 512 MB
- Operating system: Linux 3.x
- Power supply: 3.3 V DC, 3V Backup
- Dimensions: 53,6 x 42 x 6 mm
Further technical details can be found here.
Security
This CoM is the first to be equipped with the taskit security package VAULTsec, which includes the following features:
- Non-readable key memory
- Public and private EC
- SHA-256 encryption
- Encryption chip
- Secure boot solution from Atmel®
- VAES/TDES encryption technology
- True random number generator
- Unique hardware serial number
- STAMP-typical small dimensions, versatile connection options and more security: StampA5D365
Temperature:

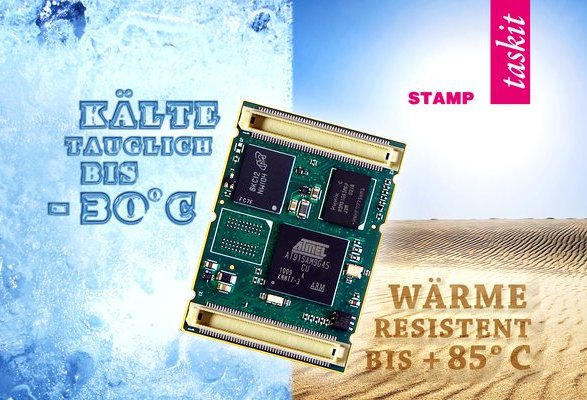

The StampA5D36 has an operating temperature of -30°C to 85°C and therefore a very high temperature tolerance.
If you are interested or have questions about the product, you can request the product here:
StampA5D36 (256F/512R) request
You can also contact us by phone at: 030 611 295 0
We look forward to your inquiries.
