Flex IoT Gateways
Freely configurable IoT gateways for connecting a wide range of end devices to modern IoT networks or opensource IoT platforms
 Industrie-PC embedded |  Ubuntu Linux system preinstalled |  OpenWRT optionally installable |  Free Cloud connection |
|---|---|---|---|
| Quad-core ARM Cortex-A7, 512 MB DDR Ram, Hardware is open and freely programmable. | All common software packages are available and can be installed automatically at the push of a button. | The Linux-based OpenWrt allows operation as a client, router or gateway. | Easy connection to common cloud providers or to your own private cloud. |
All the ways to get your data from the end device into your IoT network or IoT system
Open and free for your individual ideas and requirements
 Modular, flexible and freely configurable |  Open for your automation and control software |  Freely selectable Data protocol |
|---|---|---|
| All Flex IoT Edge Gateways are freely configurable and scalable. The modular system ensures maximum flexibility and fast implementation of your individual requirements. | Flex IoT Edge Gateways are freely programmable. You can install the control, client or server software of your choice and connect to all major cloud providers or your own private cloud. | You decide how your data is transmitted. The free selection of the protocol enables the integration into modern IoT systems as well as historically grown networks.Freely selectable Data protocol. |
Designed for professional and scalable IoT/IIoT applications
| Designed for IoT and IIoT interfaces and standards |  Configuration and access via the IoT Rest API CoAP |  Expert know-how and long-term support (LTS) |
|---|---|---|
| The Flex IoT Edge Gateways support many end devices with industrial IoT interfaces and standards. They can also be flexibly integrated into other networks via Ethernet, WiFi, 2.4 Ghz radio or LTE. | Communication takes place via the Constrained Application Protocol (CoAP), which was developed by the Internet Engineering Task Force (IETF) as a web transfer protocol for the Internet of Things (IoT). | taskit has been developing hardware for industry and research for over 30 years. In-house production and logistics enable long-term availability, quality "Made in Germany" and extensive direct expert support. |
Edge computing with a powerful and low-power Industrial ARM computing platform
 IoT Edge Computing |  IoT Edge Cloud |
|---|---|
| Use the built-in computing platform to be as close as possible to the data-generating endpoints and sensors, and pre-process the data at the edge of the network. | Install the client or server software of your choice and use the IoT Flex Edge Gateway as an edge cloud. |
| Data acquisition and aggregation | Local Data storage | Monitoring and control | Data security and compliance |
|---|---|---|---|
| Use the Flex IoT edge gateway as a "smart router". Bring together data from different end devices and sensors, pre-process it, and selectively forward the dataset to your cloud server. | Store your data decentrally at the edge of the network. For large amounts of data, this makes you independent of a broadband infrastructure. | The integrated computing unit receives the data at the data source and thus enables continuous monitoring and controlling of the connected devices with the lowest possible latency. | With edge computing, a large part of the data remains in the local network. This makes it much easier for companies to meet compliance requirements. You decide which data is published. |

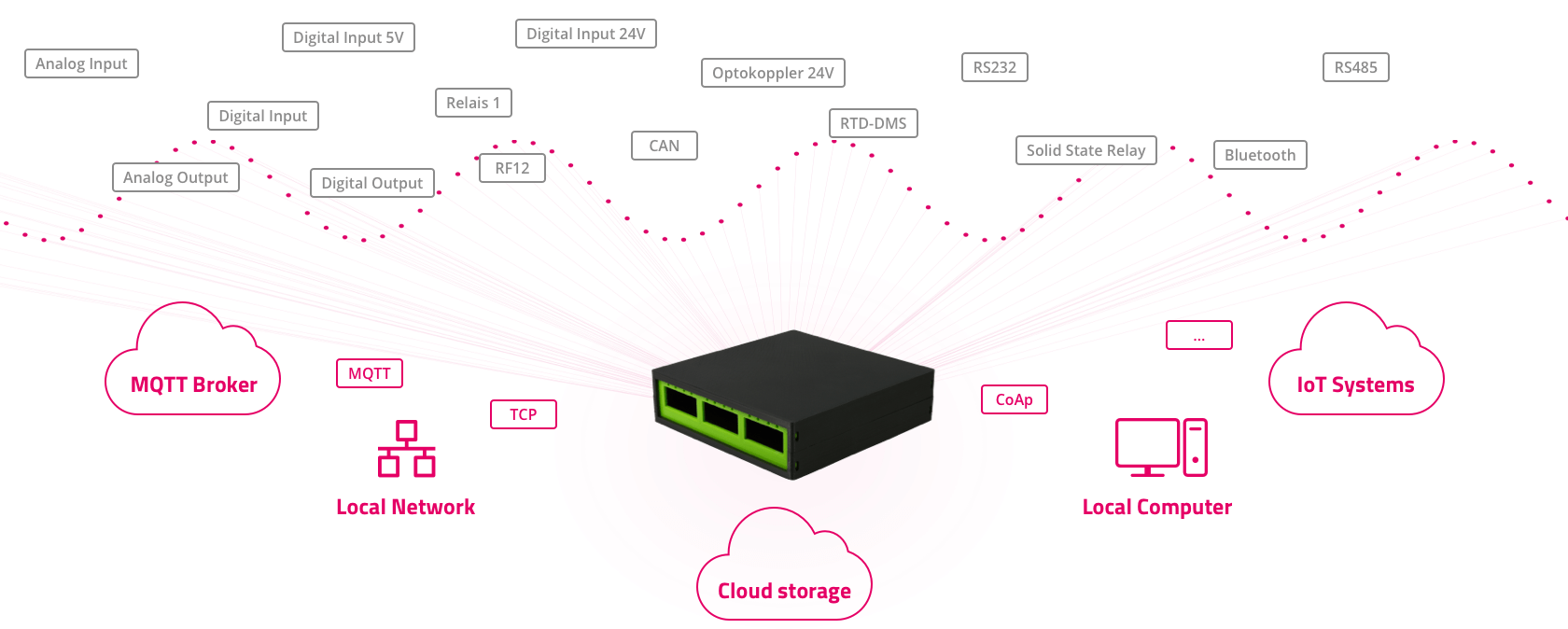

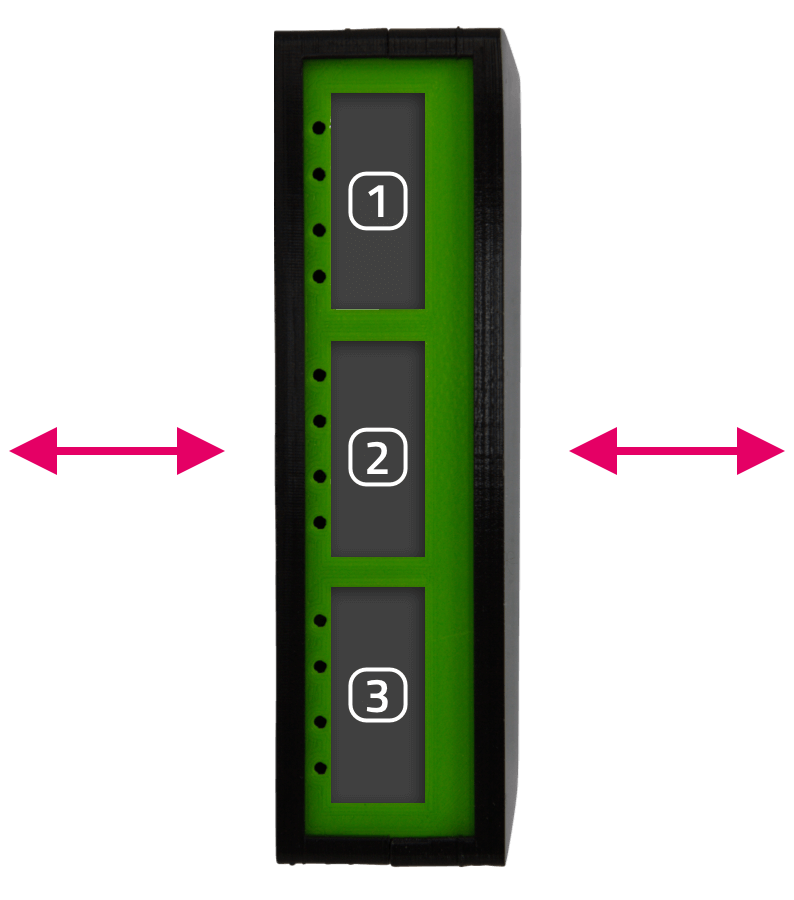

Multi-interface connectivity
You can freely select the following interfaces:  Einige Some connection modules are optionally available with integrated CPU. More details you will find in the module selection | Configure now  |  Flex IoT Edge Gateways Ethernet: Gateway variant with Ethernet connection  Flex IoT Edge Gateways WiFi: Gateway variant with Wifi connection |
|---|
Individual interfaces
Do you have a special requirement or a connection request? Then please contact us. Contact us

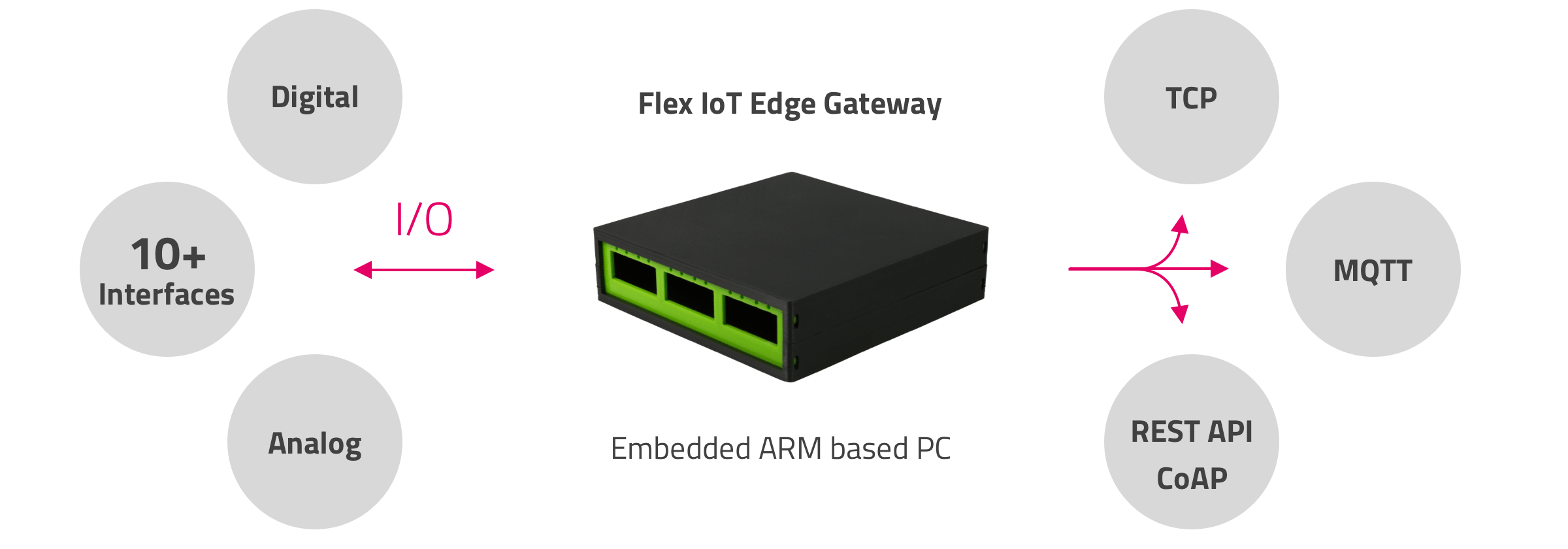

Multiprotocol connectivity
Convert your I/O data streams to the protocols of your choice
You get four free programs to convert the protocol
| TSB Web | TSB CoAP | TSB MQTT | SerialNet |
|---|---|---|---|
| TSB Web is a WebSocket server and web server that establishes a WebSocket connection to the USB GPIO module. A websocket client – for example a web application – can thus directly access the data stream of the hardware. | TSB CoAP provides a lightweight IoT REST interface CoAP.(Constrained Application Protocol). This allows the USB GPIO modules to be controlled and data streams to be retrieved directly via CoAP. | TSB MQTT is aMQTTclient for the USB GPIO modules. This allows data streams to be sent directly to external MQTT brokers via the lightweight publish/subscribe network protocol MQTT. | SerialNet SerialNet is a universalserial-to-IP tool. It establishes a standard serial interface over TCP/IP. This allows to communicate with the USB GPIO modules over a classic TCP/IP network as if it were physically connected to a serial port on the remote system. |
Rapidly develop Internet of Things apps with Docker containers
| Container Virtualization | Saving resources | Easy startup |
|---|---|---|
| Docker is an open source platform for developers and sysadmins to develop, deploy and run applications using containers. Applications run in isolation in a container and can thus be "docked" on any environment. Container virtualization ensures the separation and management of resources used on a machine, such as CPU, memory, and endpoints.Container virtualization ensures the separation and management of resources used on a machine, such as CPU, memory, and endpoints. | Docker thus enables efficient use of system resources. The instances of containerized applications consume less main memory than virtual machines. They can be started and stopped more quickly and they can be packed much more densely onto a host hardware. This means high and efficient utilization of resources and thus lower performance costs. | For easy installation and commissioning, taskit additionally provides its protocol programs as Docker containers. Additional applications can be easily installed at will via Docker. |

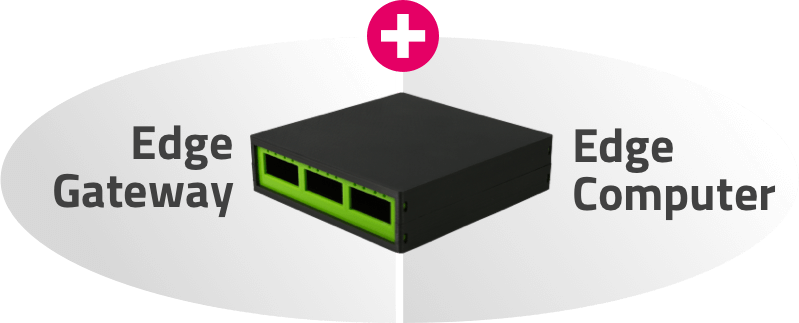

Multi-talented: Edge gateway and edge computer in one
Use it as an edge computer, edge gateway, or both at the same time
The Flex IoT Edge Gateway has many uses. Use it as an edge computer, edge gateway, or both at the same time.
| Use as Gateway | Use as local computer |
|---|---|
| Data forwarding | Local data processing, Data buffering |
| Data conversion | Data storage, Automation and control |
| Protocol conversion | Alarming, Web server |
